12MP
Network video recorderNVR-3216-H2-16P
16-Channel 12MP PoE Network Video Recorder
Professional 16-channel PoE network video recorder with 12MP recording, 160Mbps bandwidth, dual SATA storage and advanced smart-event support.
16CHIP camera input
12MPRecording resolution
16PoE ports
2× SATAStorage bays

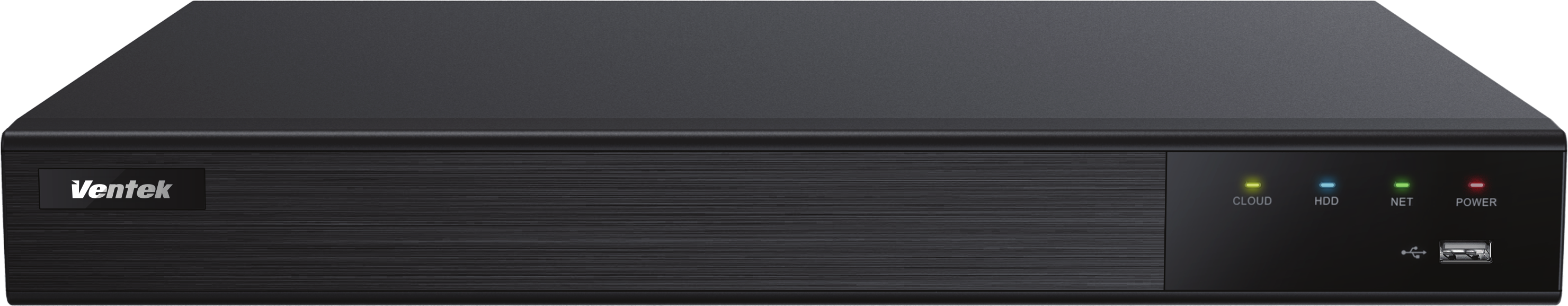

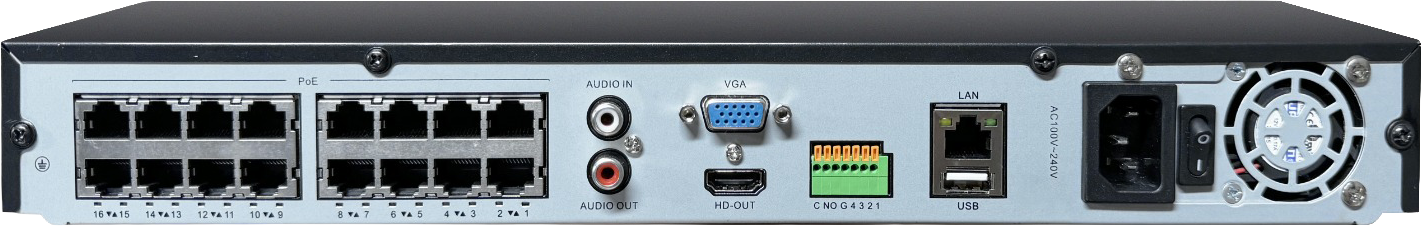

Product views
See every angle.
Core capability
Built into the recorder.
- 16-channel IP input
- 16 independent PoE ports
- 12MP recording
- H.265+ / H.264+
- 160Mbps incoming bandwidth
- Dual SATA storage
- 4K HDMI output
- ONVIF Profiles S, T and G
- 4 alarm inputs / 1 output
- Smart event analytics
Technical overview
Key specifications.
- Processor
- Quad Cortex A53
- Operating system
- Embedded Linux
- Video input
- 16 channels, up to 12MP
- Video output
- 1 × HDMI up to 4K; 1 × VGA up to 1080p
- Compression
- H.265 / H.264 / H.265+ / H.264+
- Recording
- Up to 12MP at 16 channels × 25fps PAL / 30fps NTSC
- Network bandwidth
- 160Mbps incoming / 160Mbps outgoing
- PoE
- 16 × 100Mbps ports; IEEE 802.3at 30W / 802.3af 15W; 200W total
- Storage
- 2 × 3.5-inch SATA interfaces, up to 10TB per HDD
- ONVIF
- Profiles S, T and G
- Alarm I/O
- 4 inputs / 1 output
- Audio
- 1 × RCA input; 1 × RCA output; two-way intercom
- USB
- 1 × USB 2.0 front; 1 × USB 2.0 rear
- Operating temperature
- -10°C to +50°C
- Dimensions
- 380 × 316 × 51mm
- Power
- 100–240V AC, ≤15W without HDD and PoE load
For complete technical information, supported functions and conditions, download the current specification sheet.
