Network video recorderNVR-3116-H1-8P
16-Channel 12MP 8-Port PoE Network Video Recorder
Compact 16-channel network video recorder with eight integrated PoE ports, 12MP recording, 128Mbps bandwidth and single-SATA storage.
16CHIP camera input
12MPRecording resolution
8PoE ports
1× SATAStorage bay

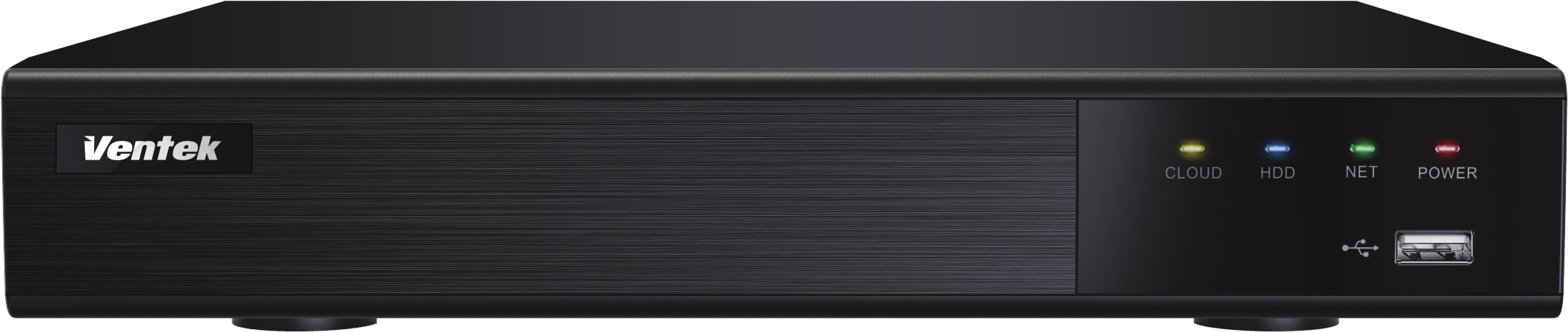

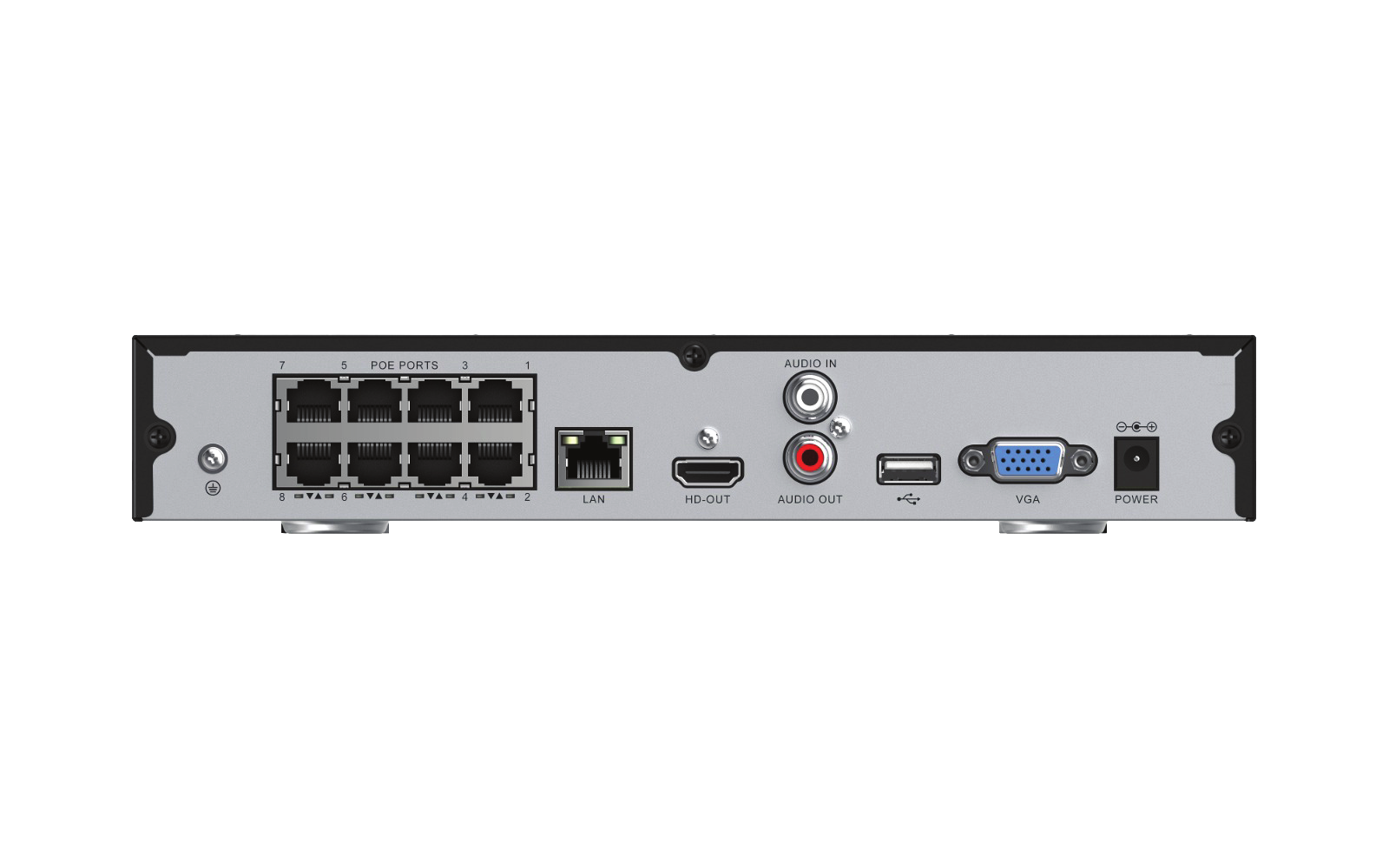

Product views
See every angle.
Core capability
Built into the recorder.
- 16-channel IP input
- 8 independent PoE ports
- 12MP recording
- H.265+ / H.264+
- 128Mbps incoming bandwidth
- Single SATA storage
- 4K HDMI output
- ONVIF Profiles S, T and G
- 200m PoE extend mode
- Smart event analytics
Technical overview
Key specifications.
- Processor
- Dual Cortex A53
- Operating system
- Embedded Linux
- Video input
- 16 channels, up to 12MP
- Video output
- 1 × HDMI up to 4K; 1 × VGA up to 1080p
- Compression
- H.265 / H.264 / H.265+ / H.264+
- Recording
- Up to 12MP at 10 channels × 25fps PAL / 30fps NTSC
- Network bandwidth
- 128Mbps incoming / 80Mbps outgoing
- PoE
- 8 × 100Mbps ports; IEEE 802.3at 30W / 802.3af 15W; 72W total
- Storage
- 1 × 3.5-inch SATA interface, up to 10TB
- ONVIF
- Profiles S, T and G
- Audio
- 1 × RCA input; 1 × RCA output; two-way intercom
- USB
- 1 × USB 2.0 front; 1 × USB 2.0 rear
- Operating temperature
- -10°C to +50°C
- Dimensions
- 260 × 230 × 43mm
- Power
- 48V DC / 1.87A, ≤10W without HDD
For complete technical information, supported functions and conditions, download the current specification sheet.
